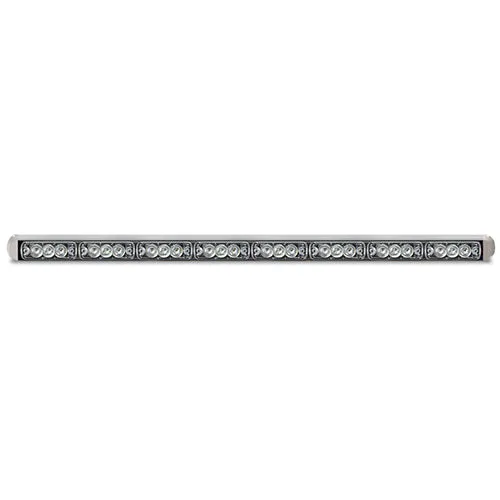

TOMAR’s RECT 13 LStick series Traffic Director does more than just direct traffic! With a built-in controller, these self-contained, fully waterproof slim-line modular light-sticks provide powerful traffic directional and warning patterns.
Available in any combination of amber, red, and blue; and with a black or silver anodized aluminum housing, they can be customized to the vehicle they are mounted on. From 24.5" to 47.25”, and with a simple, singular trigger wire control-cable available up to 40’, there is no better option for a rear-mounted, powerful light-stick in such an attractive package.
KEY FEATURES
- Easy, two screw lamp replacement
- Built in flasher with multiple flash patterns
- Internal/external mounting
- LED’s available in amber, blue, red and white (Outside modules only)
- Available in polished aluminum or black housing
R13 L-Stick lengths
1.75″ high x 1.75″ deep
- 12 lamp modules: 47.25″
- 10 lamp modules: 39.75″
- 8 lamp modules: 32″
- 6 lamp modules: 24.5″
SPECS
- Operating Temperature Range: -55°C to 65°C
- Current Draw: 200 mA average per R13 module in Neobe flash pattern
- Input Voltage: 12 VDC
AMP DRAW at 12.8VDC
- LSTICK-13TD6 2.40 Amps Max
- LSTICK-13TD8 3.20 Amps Max
- LSTICK-13TD10 4.0 Amps Max
- LSTICK-13TD12 4.8 Amps Max
Wiring Details
- Red: 12Vdc
- Black: Ground
- Orange: Warning Mode 1
- Blue: Warning Mode 2
- Orange & Blue: Warning Mode 3
- Red/White: Left Arrow
- Brown/White: Right Arrow
- Red/Wht & Brn/Wht: Center Out
- Green: Intensity Control
- Brown: Steady Burn
Flash Patterns
Traffic Direction Flash Patterns
- 10 ELEMENT ARROW FILL *** RED/WHITE and/or BRN/WHITE Wires (all Arrow Modes) DEFAULT, SINGLE FLASH
- 10 ELEMENT ARROW TRAIL
- 8 ELEMENT ARROW FILL, WARNING LAMPS OFF
- 8 ELEMENT ARROW TRAIL, WARNING LAMPS OFF
- 8 ELEMENT ARROW FILL with 2 Warning (SINGLE OUTBOARD) ALTERNATING
- 8 ELEMENT ARROW TRIAL with 2 Warning (SINGLE OUTBOARD) ALTERNATING
- 8 ELEMENT ARROW FILL with 2 Warning (SINGLE OUTBOARD) SIMULTANEOUS
- 8 ELEMENT ARROW TRAIL with 2 Warning (SINGLE OUTBOARD) SIMULTANEOUS
- 6 ELEMENT ARROW FILL, WARNING LAMPS OFF
- 6 ELEMENT ARROW TRAIL, WARNING LAMPS OFF
- 6 ELEMENT ARROW FILL with 4 Warning (DUAL OUTBOARD) ALTERNATING
- 6 ELEMENT ARROW TRAIL with 4 Warning (DUAL OUTBOARD) ALTERNATING
- 6 ELEMENT ARROW FILL with 4 Warning (DUAL OUTBOARD) SIMULTANEOUS
- 6 ELEMENT ARROW TRAIL with 4 Warning (DUAL OUTBOARD) SIMULTANEOUS
Flash Patterns, Warning Modes (All Versions)
- OFF
- COMBINATION ** DEFAULT SCROLL FLASH
- INBOARD OUTBOARD
- LEFT RIGHT
- ALTERNATE
- RANDOM
- SINGLE OUTBOARD
- DOUBLE OUTBOARD
- SINGLE INBOARD
- DOUBLE INBOARD
- TRIPLE INBOARD (not available on 6 lamp versions)
- SWEEP
Flash Rates
- SINGLE FLASH
- DOUBLE FLASH
- NEOBE FLASH
- SCROLL FLASH WARNING PATTERNS
